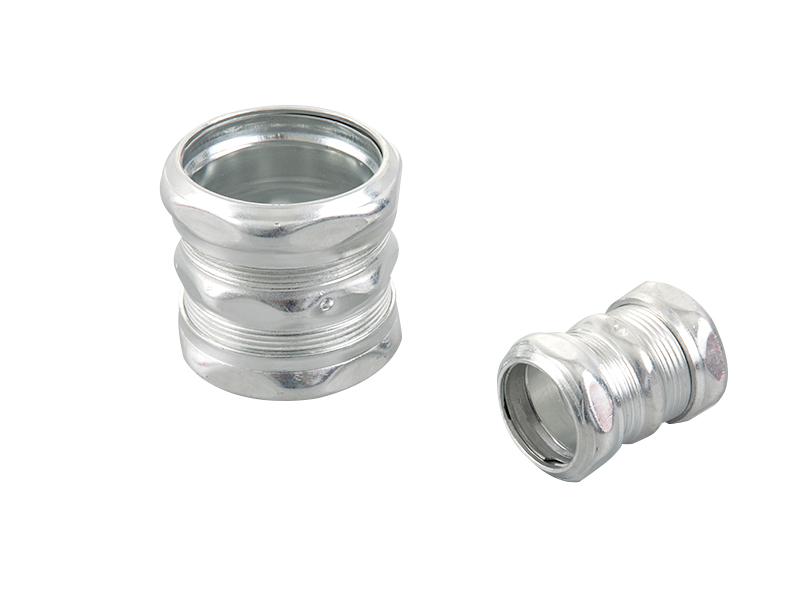

Emt steel compression set screw coupling
PART NO | SIZE | A | B | C | inner packing |
Outer packing |
Gross weight |
XTC-760 | ½" | 2.031 | 1.102 | 50 | 500 | 28.80 | |
XTC-761 | 3/4" | 2.094 | 1.382 | 25 | 250 | 19.80 | |
XTC-762 | 1" | 2.256 | 1.654 | 20 | 200 | 26.50 | |
XTC-763 | 1-1/4" | 3.150 | 1.969 | 10 | 100 | 24.80 | |
XTC-764 | 1-1/2" | 2.228 | 2.244 | 10 | 100 | 36.00 | |
XTC-765 | 2" | 3.307 | 2.717 | 5 | 50 | 20.30 | |
XTC-766 | 2-1/2" | 4.882 | 3.760 | 8 | 6.80 | ||
XTC-767 | 3" | 5.287 | 4.528 | 6 | 7.40 | ||
XTC-768 | 3-1/2" | 5.512 | 5.079 | 4 | 5.40 | ||
XTC-769 | 4" | 5.709 | 5.630 | 4 | 6.30 |
