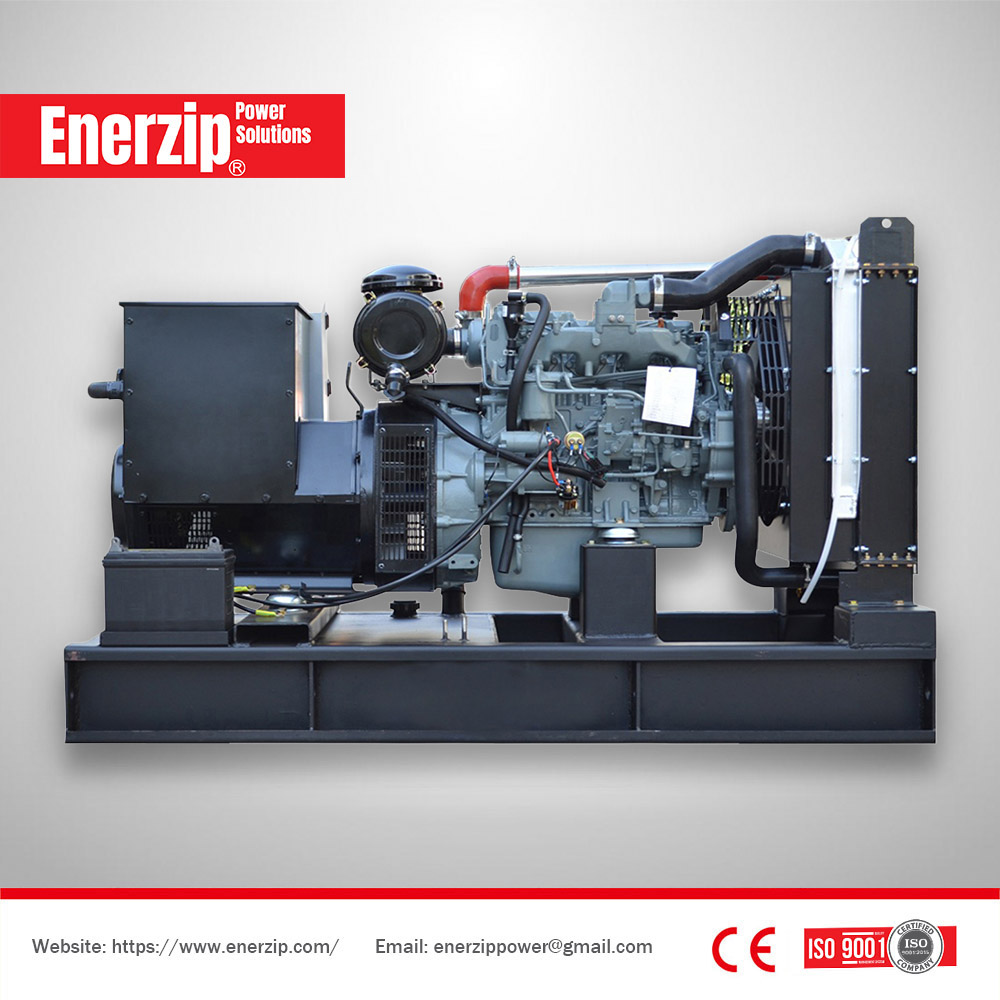

Enerzip 160 kW / 200 kVA Diesel Generators Powered by Deutz Engines

Enerzip 160 kW / 200 kVA Diesel Generators Powered by Deutz Engines are designed for industrial prime power, standby power and emergency backup power applications. This generator model is suitable for factories, commercial buildings, construction projects, mining support facilities, telecom sites, water pump stations, workshops, warehouses, hospitals, farms and other sites requiring stable three-phase diesel power.

This Enerzip diesel generator is powered by a Deutz BF6M1013FC G3 diesel engine and matched with a high-efficiency brushless alternator, digital generator control system, heavy-duty steel base frame, radiator cooling system, industrial exhaust silencer and standard generator protection devices. The generator can be supplied as an open type, silent type, trailer type or customized power system according to project requirements.

The generator set model is DE220E5. Its prime power is 160 kW / 200 kVA and its standby power is 176 kW / 220 kVA. It can operate as a single diesel generator or be integrated with ATS panels, synchronizing control panels, distribution boards, remote monitoring systems and external fuel systems for industrial power supply and backup power projects.

Power Rating and Application Definition

The prime power rating is suitable for variable load applications where the generator may operate for an unlimited number of annual operating hours within the required maintenance intervals. The permissible average power output during a 24-hour period should not exceed the recommended average loading condition according to project design and applicable generator standards.

The standby power rating is intended for emergency power supply under agreed operating conditions. Standby power is normally used when the mains supply fails. No overload capability is available under standby rating. For continuous operation, high-load applications, high ambient temperature sites or special installation conditions, Enerzip can help confirm the correct generator rating, cooling system, fuel tank capacity and control configuration according to the actual load profile.

Main Generator Specifications

Voltage and Current Data

Performance Data

Fuel Consumption Data

Fuel consumption data is based on standard reference conditions with diesel fuel. Actual fuel consumption may vary according to site altitude, ambient temperature, load factor, fuel quality, cooling arrangement, generator configuration and installation conditions.

Dimension and Weight

Dimensions, weights and fuel tank capacity are based on standard generator configurations. Final data may vary according to alternator brand, canopy structure, fuel tank design, exhaust system, control system, cable connection method and customized project requirements.

Engine Specifications

Cooling System

The cooling system can be configured for demanding site conditions. For high ambient temperature applications, the generator cooling system can be designed for operation in 50°C / 122°F ambient conditions, subject to final installation design, ventilation arrangement and air flow requirements.

Inlet and Exhaust Data

Engine Output Data

Lubrication System

Electrical System

Alternator Specifications

The generator is matched with a high-efficiency brushless alternator selected according to the required voltage, frequency, site load condition, motor starting requirement and project configuration. Different alternator brands and excitation systems can be supplied according to customer requirements.

Control Panel Configuration

The Enerzip control panel is designed for generator monitoring, engine protection, alternator protection, AMF operation and optional remote monitoring. The system can be configured according to manual start, automatic start, standby power, prime power, ATS connection or synchronization operation.

• Emergency stop button
• Protection MCB
• Battery charger
• Integrated aviation plug
• ATS connection
• Digital control module
• Manual start and automatic start/stop operation
• 3-phase generator set monitoring
• Support for engines equipped with electronic control unit
• Comprehensive diagnostic message display
• Push buttons for simple operation and lamp test
• Graphic back-lit LCD display
• Adjustable parameters via keyboard or PC
• Mains measurements for 50Hz and 60Hz applications
• Generator measurements for 50Hz and 60Hz applications
• Comprehensive shutdown and warning functions under fault conditions

Generator Protection Functions

• Over-voltage protection
• Under-voltage protection
• Over-frequency protection
• Under-frequency protection
• Current asymmetry protection
• Voltage asymmetry protection
• Over-current protection
• Overload protection
• Battery voltage monitoring
• Engine speed measurement by magnetic pick-up
• Configurable analog inputs
• Configurable programmable binary inputs and outputs
• Warm-up function
• Cooling-down function
• Generator circuit breaker and mains circuit breaker control with feedback
• RS232 interface
• Modem communication support
• Running hours counter
• IP65 sealed control panel option
• Event log

Standard Features

• Deutz BF6M1013FC G3 diesel engine
• High-efficiency brushless alternator
• Digital generator control module
• Manual and auto-start control panel
• DC and AC wiring harnesses
• Radiator cooling system
• Heavy-duty steel base frame
• Industrial exhaust silencer
• Output circuit breaker
• Emergency stop system
• Generator protection functions
• Engine protection functions
• Alternator protection functions
• Battery charging system
• Anti-vibration mounting system
• Operation and maintenance documentation

Sound Attenuated Enclosure

The generator can be supplied with a fully weatherproof sound attenuated enclosure for outdoor installation. The enclosure is designed with an internal exhaust silencer, ventilation arrangement, maintenance access doors and corrosion-resistant construction. Silent canopy design can be customized according to noise level requirements, ambient temperature, installation space and site operating conditions.

Optional Configurations

• Water jacket pre-heater and fuel heater
• Winding temperature measuring instrument
• Alternator pre-heater
• PMG excitation system
• Anti-damp and anti-corrosion treatment
• Anti-condensation heater
• Winding and bearing RTD
• Extended range fuel tank
• Bunded fuel tank
• Rental type canopy
• Trailer
• Low fuel level alarm
• Automatic fuel feeding system
• Fuel T-valves
• Oil pre-heater and oil temperature sensor
• Remote control panel
• ATS automatic transfer switch
• Synchronizing controller
• Adjustable earth leakage relay
• Ethernet interface
• GSM modem or wireless internet remote monitoring
• RS232-RS485 dual port interface
• Distribution board with sockets kit and power busbar
• Earth leakage protection and earth fault protection
• Low coolant level shutdown
• High lubricating oil temperature shutdown
• Additional digital and analog inputs and outputs

Design Criteria

The generator set can be configured to meet applicable diesel generator performance requirements for transient response, emergency standby operation and industrial power supply applications. The cooling system can be designed for operation in high ambient temperature environments, including 50°C / 122°F conditions, subject to final site installation and ventilation design.

For motor starting applications, the alternator and generator output can be selected according to the starting current, load step, voltage dip requirement and site operating mode. For critical power applications, Enerzip can provide ATS systems, synchronization systems, paralleling panels and distribution solutions according to the electrical design.

Applications

This Deutz powered diesel generator is suitable for industrial and commercial applications requiring compact structure, reliable performance and stable power output. It can be used in factories, construction sites, farms, water pump stations, telecom projects, commercial buildings, workshops, warehouses, hospitals, emergency backup systems and remote power supply applications.

For industrial sites, this generator can support pumps, lighting systems, small production equipment, ventilation systems, maintenance workshops, control rooms and emergency backup loads. For commercial buildings and public facilities, it can be integrated with ATS panels and distribution cabinets to provide automatic standby power when the mains supply fails.

For customized power systems, Enerzip can support project configuration according to load capacity, voltage level, cable connection, fuel supply, control logic, enclosure type and site installation requirements.

Enerzip Generator Solutions

As a professional Diesel Generator Manufacturer & Supplier, enerzip provides open type diesel generators, silent diesel generators, trailer generators, containerized diesel generators, ATS systems, paralleling systems, high-voltage generator solutions and customized industrial power systems for different project applications.

Enerzip can configure generator sets according to engine brand, alternator brand, controller brand, voltage, frequency, canopy type, fuel tank capacity, noise level, ambient temperature, altitude, load type, installation environment and project requirements.

Quality and Compliance

Enerzip generator systems can be configured according to applicable international electrical standards and customer site requirements. ISO 9001, ISO 14001, ISO 45001 and CE certificates are available for applicable product and project documentation. Factory testing, load testing and inspection can be arranged before delivery according to order requirements.

Load testing, inspection and documentation can be arranged according to project requirements. Generator configuration, technical data and final dimensions may be adjusted according to actual production design, component selection and customer requirements.

Price

Negotiable / Based on Configuration

The final price depends on engine configuration, alternator brand, controller brand, canopy type, voltage, fuel tank capacity, ATS system, paralleling system, transportation method and project requirements. Please contact Enerzip for the latest factory quotation.
